dry coal shed space frame project

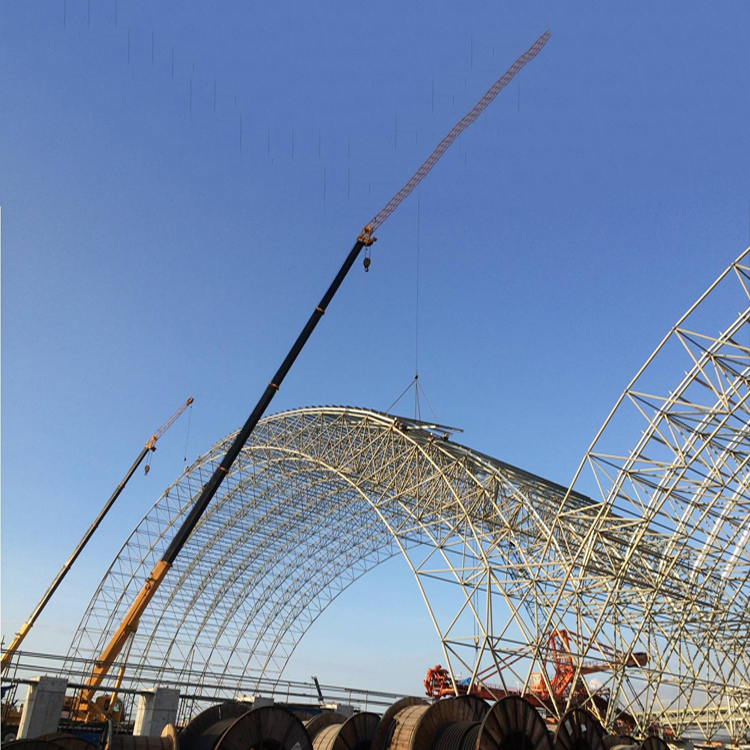

This project is a dry coal shed space frame project for a 3×135MW coal-fired power station in Mesamesi, Philippines. It is located in the PHIVIDC Industrial Zone, Eastern Misamis Province, Mindanao, the Philippines. Space frame, cylindrical shell span 2x100m, horizontal projection area is about 19256.5m2, cylindrical shell length 95m, net shell thickness 3.529m, support sphere center elevation +2.40m, grid top sphere center +33.800m, bottom chord supported on concrete column , The structure of the quadrangular pyramid shell is placed in the front, and the joints are bolted ball joints.

For more project information, please consult the website：https://cnxzlf.com
